主要技術數據

額定電壓：220V,110V,48V,24V,12V。
額定電流：0.01A,0.015A,0.025A,0.05A,0.075A,0.1A,0.15A,0.25A,0.5A,0.75A,1A。
動作值：動作電流不大于90%額定電流；動作電壓不大于70%額定電壓。
功率消耗：電流不大于0.3W；電壓不大于2W。
介質強度：繼電器的各電路對外露的非帶電金屬部分應耐受交流50Hz，電壓2kV歷時1min試驗無擊穿或閃絡現象。

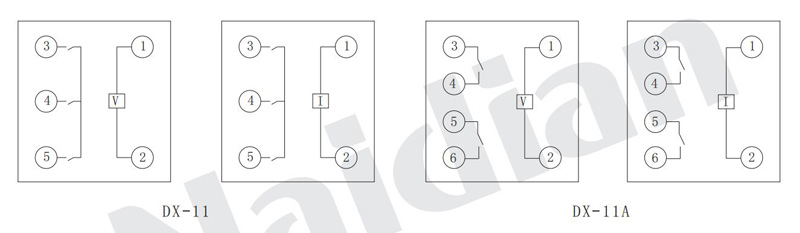

內部接線

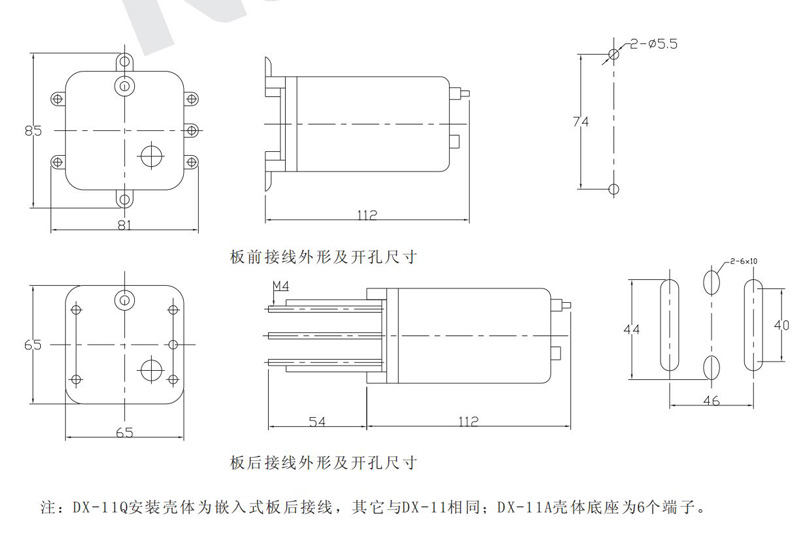

外形及開孔尺寸
